Model

• OZG 2.5N, 5.0N ( Absolited )
• OZG 10N

FEATURES

• Avoiding chemical usage in water of cooling system.
• Reducing maintenance cost of cooling system due to reduction of scale and microorganisms.
• Reducing make-up water supplying to cooling tower due to stabilizing water parameter.
• Kill more than 99% of bacteria in the water which causes of affliction. more details

• OZG GAS 500mg/ht 1000mg/hr

FEATURES

• Low cost ozone gas generator.
• Suitable for drinking water ozonizer.
• Suitable for odor removal ozonizer.more details

• OZG 30N, 50N, 100N

FEATURES

• Avoiding chemical usage in water of cooling system.
• Reducing maintenance cost of cooling system due to reduction of scale and microorganisms.
• Reducing make-up water supplying to cooling tower due to stabilizing
  water parameter.
• Kill more than 99% of bacteria in the water which causes of affliction.more details

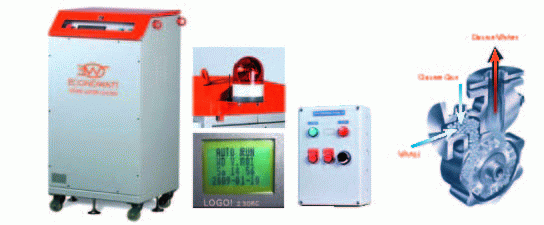

• OZG 30S, 50S

FEATURES

• Avoiding chemical usage in water of cooling system.
• Reducing maintenance cost of cooling system due to reduction of scale and microorganisms.
• Reducing make-up water supplying to cooling tower due to stabilizing
  water parameter.
• Kill more than 99% of bacteria in the water which causes of affliction.

SPECIFICATION

• Ozone Dissolve Capacity
  • up to 1.6 ppm (OZG 30S)
  • up to 2.7 ppm  (OZG 50S) (at sampling point, 25° C clean water without chemical)
• Ozone Gas Capacity
  •  30g/hr (OZG 30S)
  •  50g/hr (OZG 50S) (at 25° C)
• Internal Oxygen Supply
  • ATF Oxygen Modules
    • Flow 15 LPM at 90% O2 v/v (+3% / -5%)
    • Ta 4°C to 54 °C (inside operating enclosure)
    • Oxygen Delivery Dewpoint : -73°C
• Cooling System
  • Water and Air Cooling for Corona Discharge Chamber
• Supply Voltage
  • 380 V 3ø  , 4 Wire 50/60Hz
• Power Consumption
  • 7.04 kW / 9.4 kW (OZG 30S)

  • 7.48 kW / 9.8 kW (OZG 50S)

• Ozone Mixing Method
  • Dynamic Mixing up to 70% Efficiency of Mixing (At 25° C clean water without chemical)
• Control System
  • MPCU (Maximum Performance Control Unit), PCL with LCD display
• Monitoring System
  • GPRS, LCD pane
• Protection
  • Emergency Stop
    • Corona Disharge Failure
    • Ozone Leakage Sensor
    • Over Current Pretection
    • Phase Loss Protection Door open Protection
    • Water Loss Protection
• Alarm
  • Wireless Remote Alarm Box
  • Siren (Optional)
  • Mobile SMS (Optional) more details
